Description
MM240 Mixer Amplifier 2 x 120W

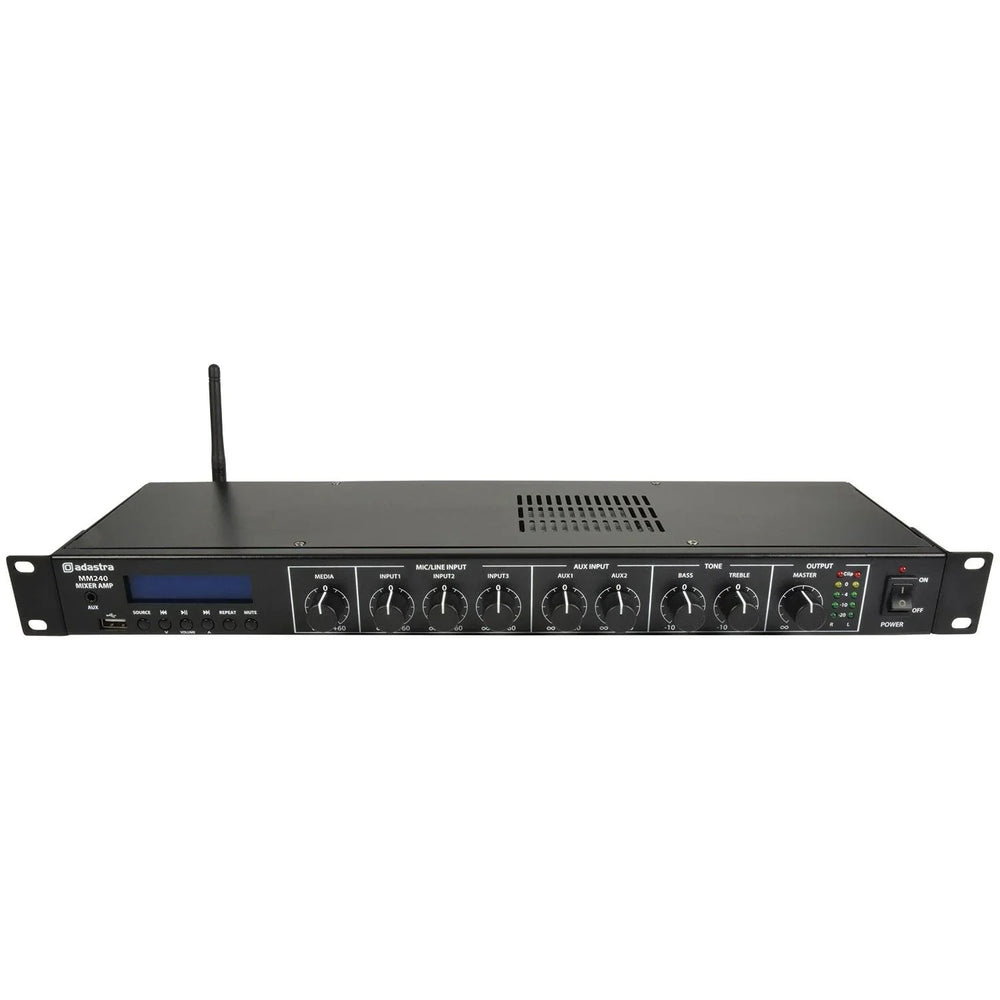

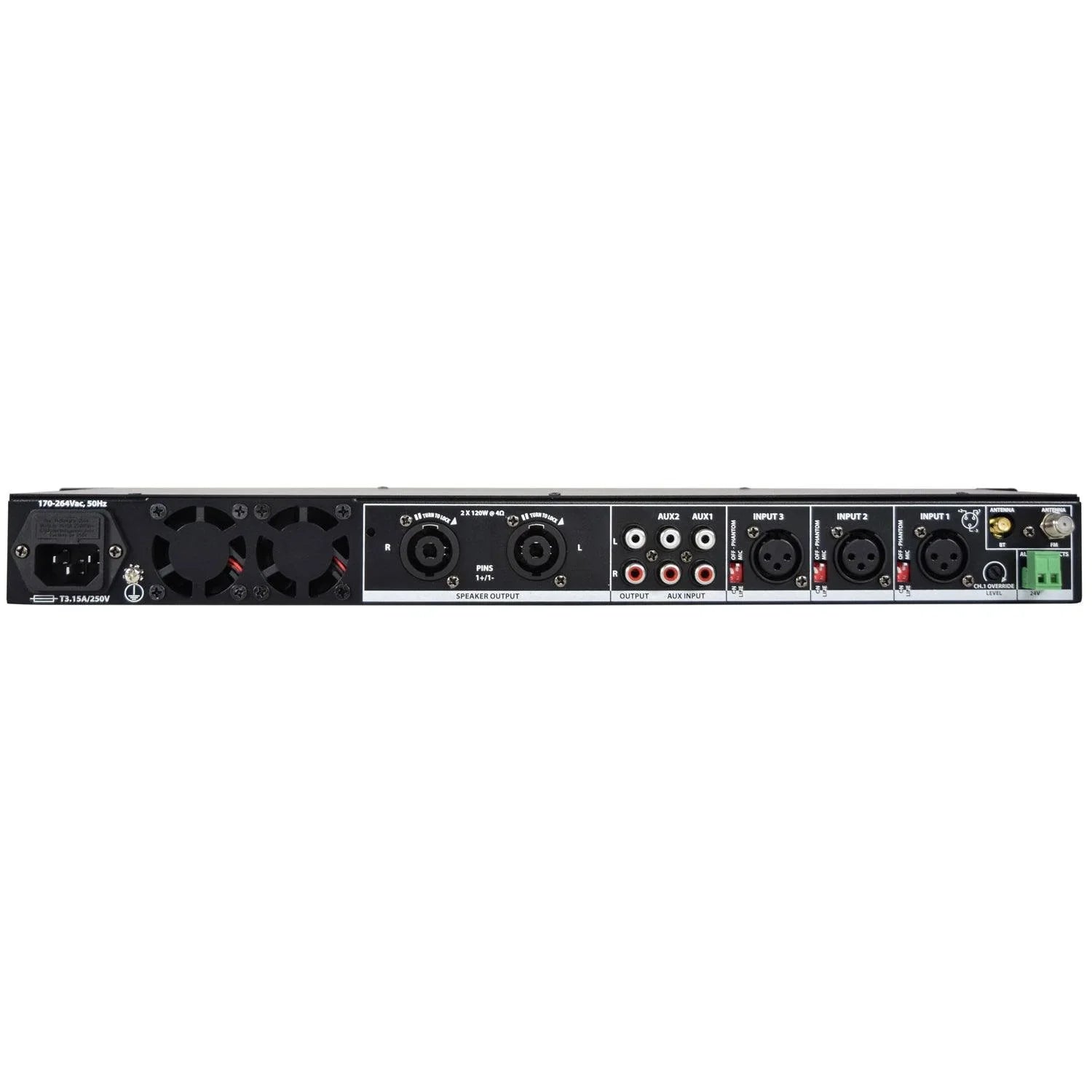

Compact 1U mixer-amp featuring a built-in media player with DAB+ and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB+/FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB audio player
- Switchable +20V phantom power
- Variable priority muting for channel 1
- 24V emergency mute contacts
- Power supply100-240Vac, 50/60Hz (IEC)
- FuseT3.15A
- Output power : 4 Ohms2 x 120Wrms
- Inputs : mic/line3 x XLR (bal/unbal)
- Inputs : aux2 x L+R RCA
- Input : line3.5mm jack to media player
- Audio sourceDAB+/FM tuner, USB player, Bluetooth receiver
- Line outputL+R RCA
- Speaker outputsL+R SPK connector
- Emergency control24V contacts mute all except channel 1
- Phantom power+20V (switchable channels 1-3)
- Bluetooth version5.0
- ControlsMedia, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
- Rear panel controlsPriority muting level, mic/line and phantom DIP switches
- Input impedance2.2k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic20Hz - 18kHz
- Frequency response : line14Hz - 20kHz
- Frequency response : aux10Hz - 23kHz
- Input sensitivity : mic/line-45dBV
- Input sensitivity : aux/line-10dBV
- Signal to noise ratio : mic55dB
- Signal to noise ratio : aux/line60dB
- Dimensions482 x 123 x 44mm
- Weight1.96kg
