Description
LIGHT SOURCE:
• 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.) • 17° beam angle
• CRI >90
• Pixel Pitch: 85.5mm
FEATURES:
• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV color mixing

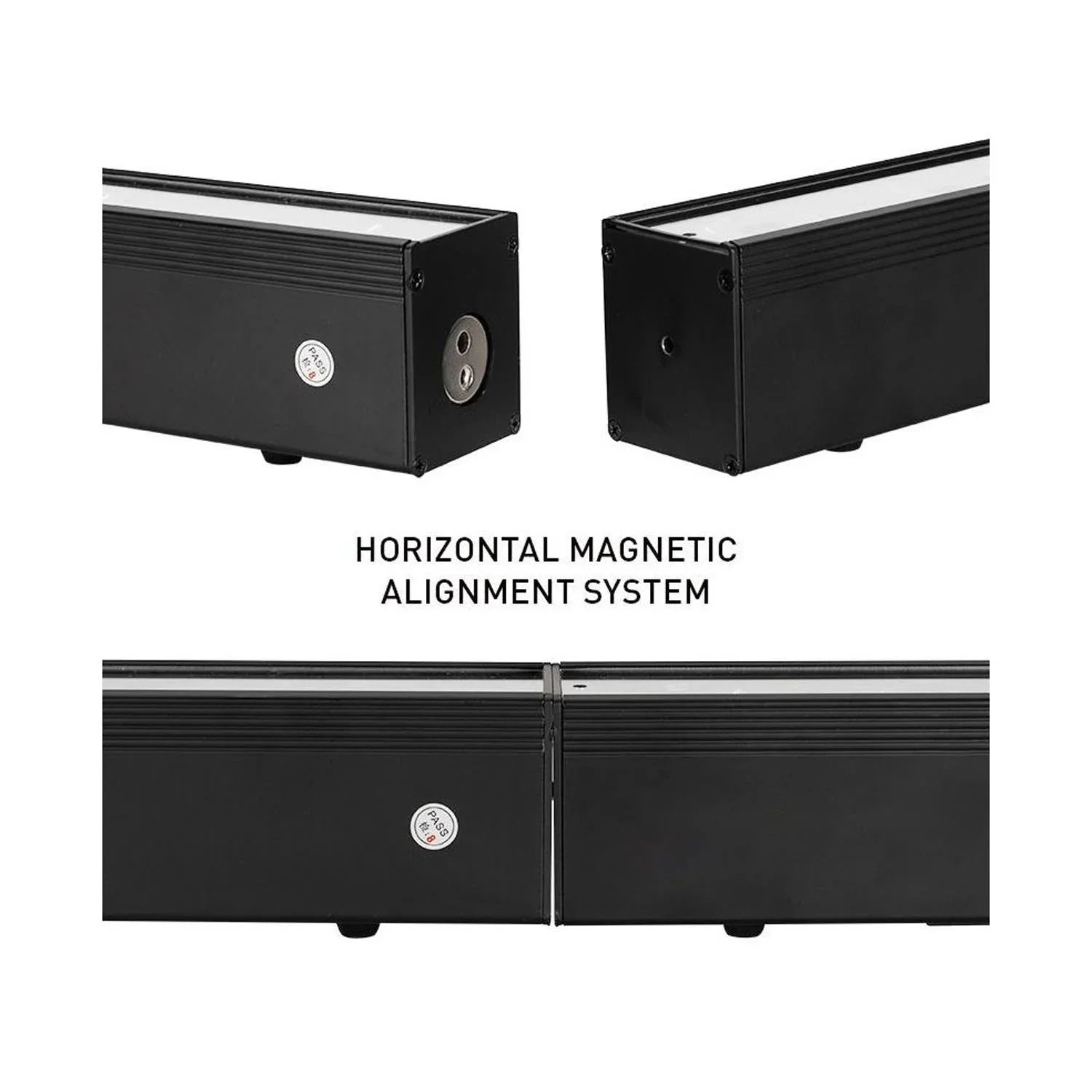

• Horizontal Magnetic Alignment feature (Built-In)

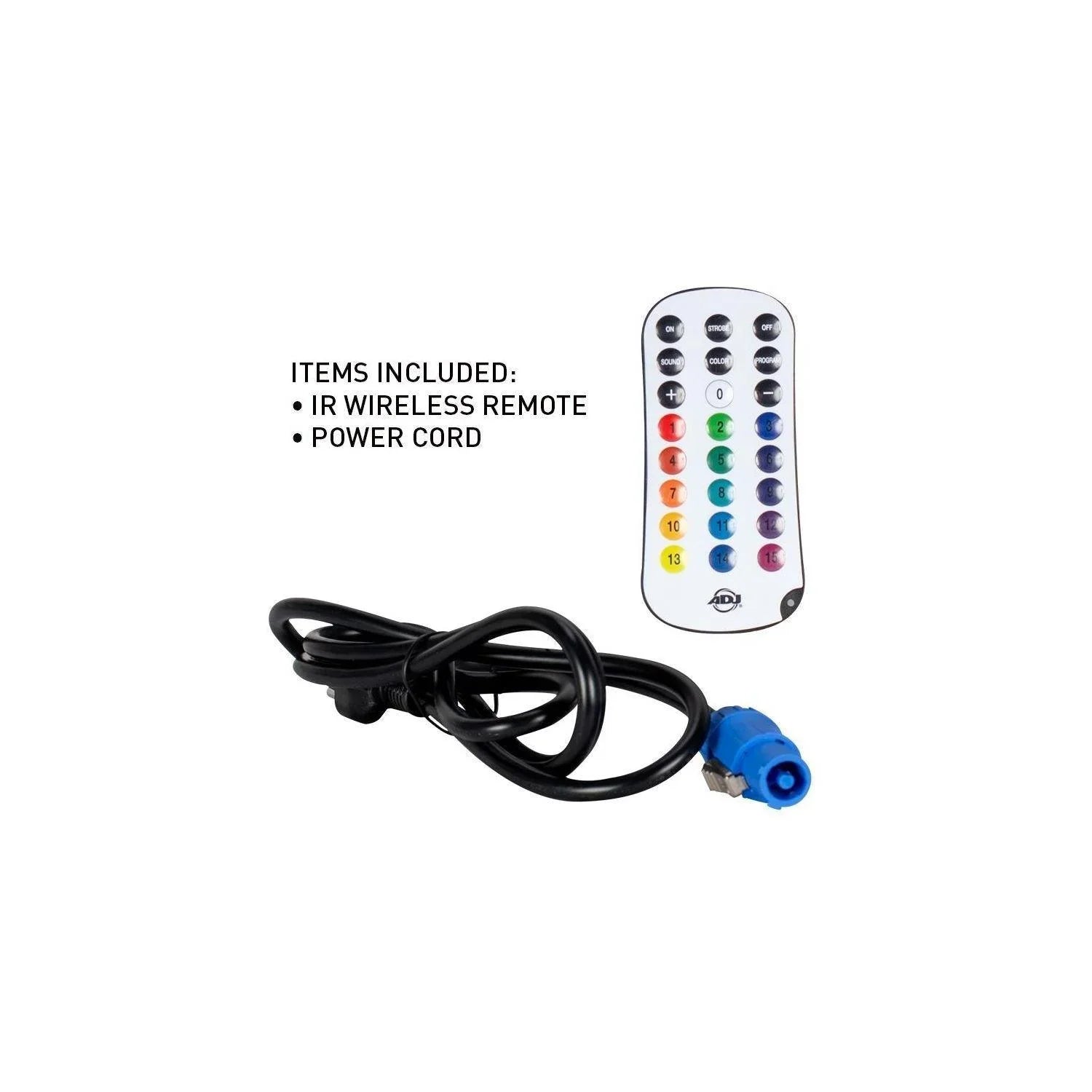

• Compatible with the ADJ UC-IR24 remote. Operates at
a distance of up to 32.8 feet (10 meters) • RDM Compatible
CONTROL:
• Linear Color Temperature Control (2,300K to 9,900K) • OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28
Channels
• 3 Groups x3 RGBAL+UV LED pixels controllable via
DMX in 18, 25 & 28 channel modes
• 5 operational modes: Auto Run, Program Mode,
Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode • LED Refresh Rate: 1.9KHz
• 64 built-in Color Macros
• 6 selectable Dim Modes (Standard, Stage, TV,
Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square
& S. Curve)
• Built-In Microphone for sound trigger • LED pulse and strobe effect
• Electronic Dimming: 0-100%
CONNECTIONS:
• Linkable: DMX via 5-pin XLR cable
• Indoor Locking power In/Out to daisy chain power
ELECTRICAL:
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 54W
• Daisy-chain power link (Up to 22 UBL9H’s can be linked
@120V and up to 40 UBL9H’s can be linked @230V)
With 20 ° Diffusion Filter on fixture.
2300K
LINEAR COLOR TEMPERATURE CONTROL (TUNABLE WHITE)
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 2.96” x 42.60” x 4.2” (75x1082x106.7mm)
• Weight: 7.28 lbs./ 3.3kg.
