Description

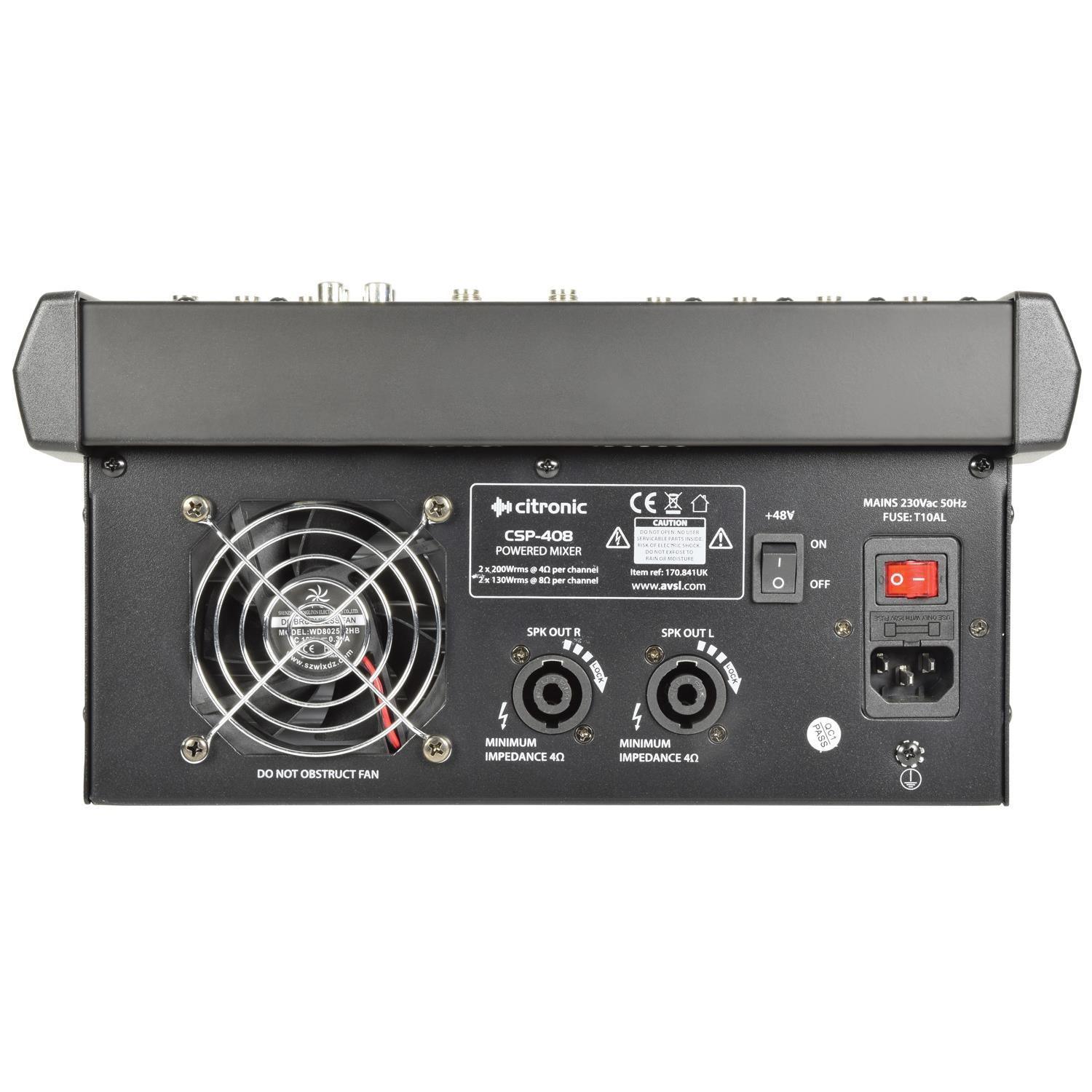

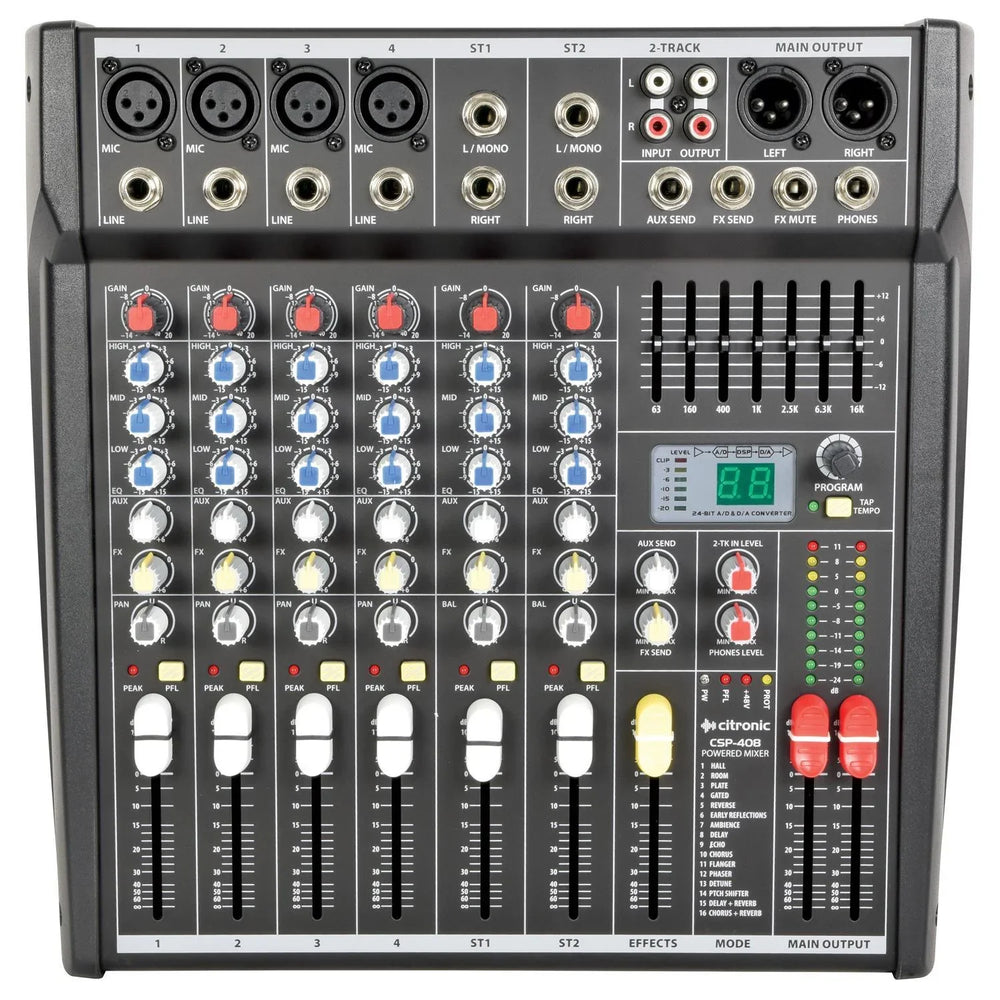

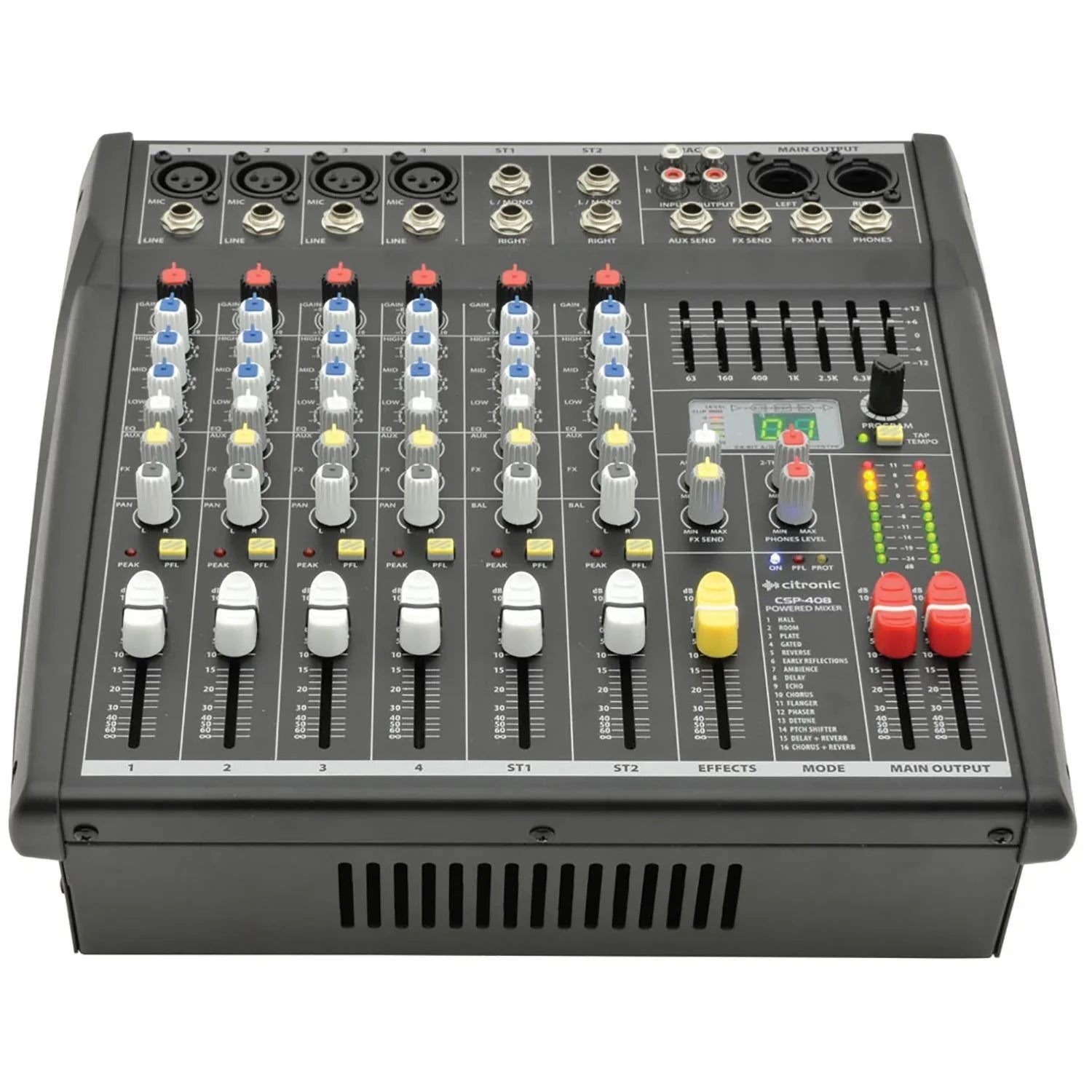

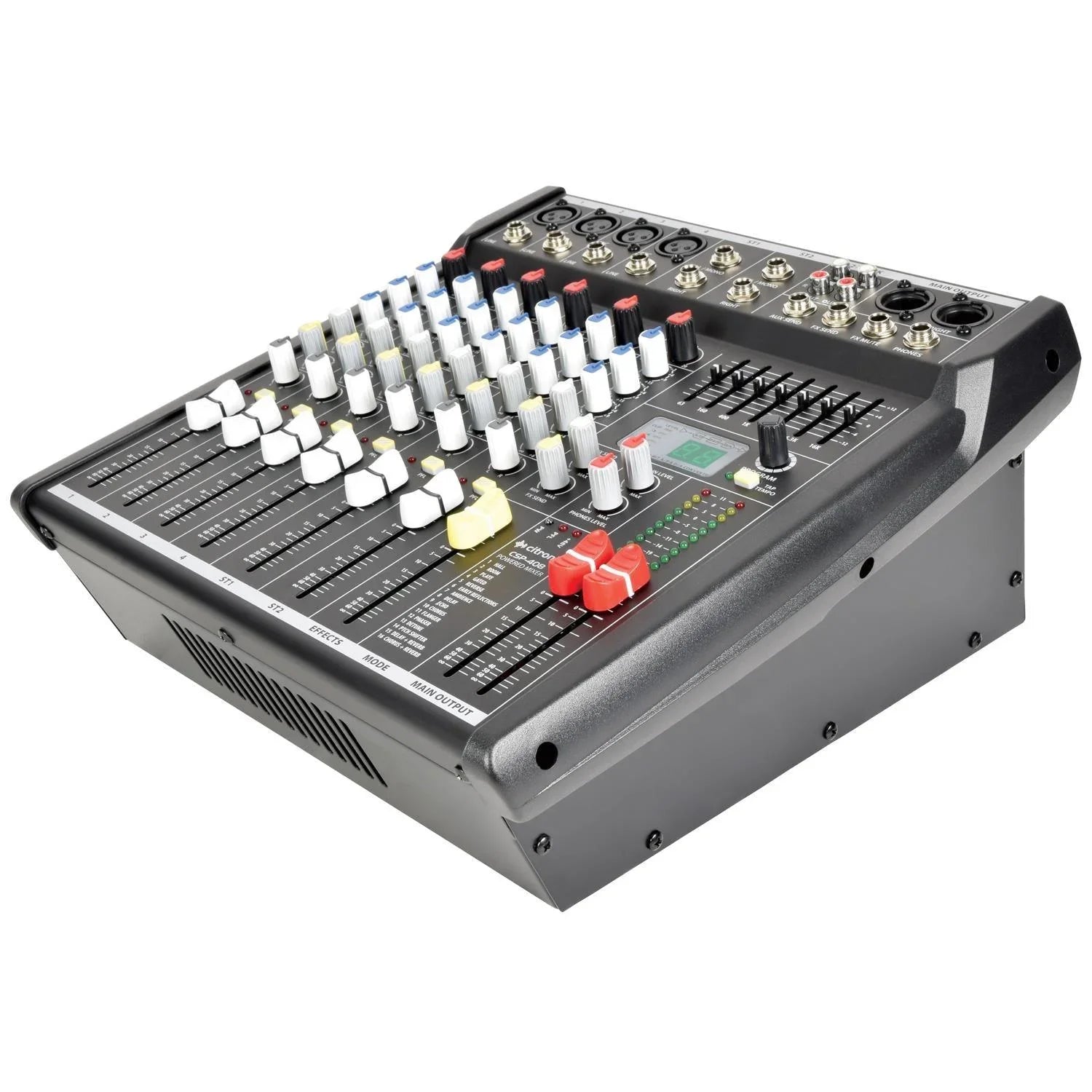

CSP Series Compact Powered Mixers with DSP
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
- Power supply230Vac 50Hz (IEC)
- Speaker : outputsL+R SPK connectors
- Effects16 program DSP (24-bit sigma-delta, 40khz)
- Phantom power+48V (XLR inputs)
- Frequency response20Hz-30kHz (0.5dB)
- Input level+24dBu
- Output level : line+26dBu
- CMRR>74dB (mic 1kHz)
- THD +N<0.01% (channel to main out)
- Crosstalk>85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ: high12kHz ±15dB shelving
- EQ: mid2.5kHz ±15dB band pass
- EQ: low80Hz ±15dB shelving
- Input impedance : mic (balanced)2k Ohms
- Input impedance : line (balanced)10k Ohms
- Sensitivity : mic-60 to +14dBu
- Sensitivity : line-40 to +14dBu
- 2-track2 x RCA in & out (-2dBu)
- Output impedance<75 Ohms
- Headphone output6.3mm jack, 30-600 Ohms
| Power consumption | 600W | ||
|---|---|---|---|
| Fuse | T10A (5 x 20mm, 250V) | ||
| Output power @ 4 Ohms | 2 x 200Wrms | ||
| Output power : 8 Ohms | 2 x 130Wrms | ||
| Inputs : mic/line | 4 x balanced XLRF/TRS jack | ||
| Dimensions | 315 x 322 x 153mm | ||
| Weight | 6.80kg |
