Description

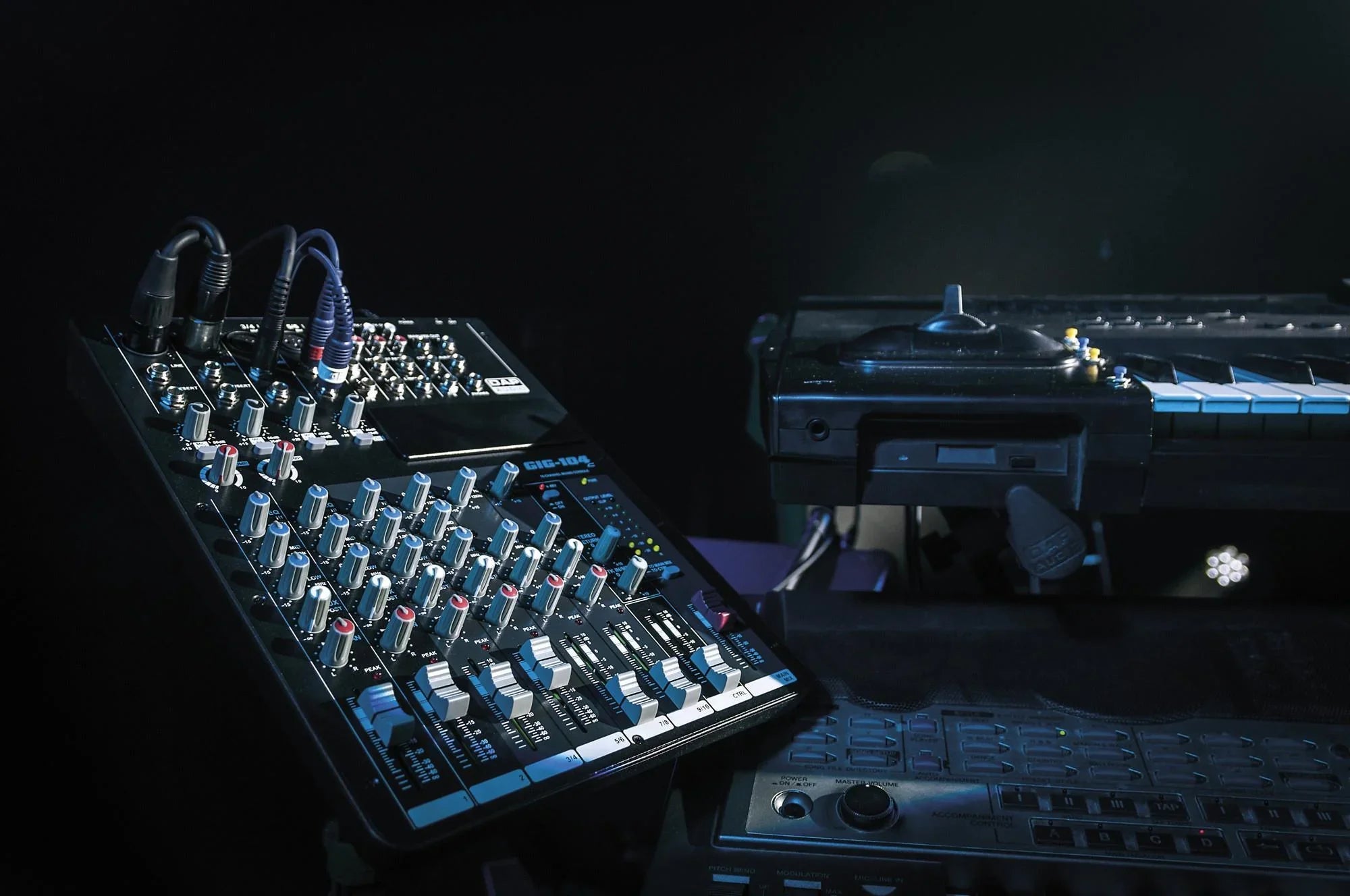

The DAP GIG-104C is a 10-channel live mixer with 4 stereo and 2 mono inputs including +48 V phantom power for connecting either dynamic and condenser microphones. Both mono and two stereo signals include a 3-bands EQ. The other two stereo signals include a 2-bands EQ. The first two mono signals have an onboard compression module to ensure that the vocals are even and well intelligible.
It is possible to use an external effect device thanks to its send- and return connections. Besides, you can integrate the MP3 USB Record Module that is especially designed for DAP GIG analogue mixers.
Inputs
Mono Inputs4
Mono Input Connector3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 20 dB
Mono Input Impedance 1800 ?
Balanced Mono Input Sensitivity 15 dBu
Stereo Inputs 4
Stereo Input Connector 3-pin XLR, RCA, TS unbalanced 6.3 mm
Stereo Input Gain Range 40 dB
Stereo Input Impedance 10000 ?
Unbalanced Stereo Input Sensitivity 20 dBv
2-track Audio Input Yes
Stereo Return Input Yes
Outputs
Main Outputs 1
Main Output Connector TS unbalanced 6.3 mm
Main Output Impedance 120 ?
Auxiliary Outputs 1
Auxiliary Output Connector TS unbalanced 6.3 mm
Auxiliary Output Impedance 120 ?
Control Room Output 1
Control Room Output Connector TS unbalanced 6.3 mm
Control Room Output Impedance 120 ?
Headphone Output 1
Headphone Output Connector TS balanced 6.3 mm
Audio Specifications
THD Level < 0.03 %
Signal-to-noise Ratio > 100 dB
Signal-to-noise Ratio (Mic) > 100 dB
Signal-to-noise Ratio (Line) > 100 dB
Frequency Response Minimum 22 Hz
Frequency Response Maximum 22000 Hz
Phantom Power 48 V
Sound Editing
Parametric Channel Equalizer 2 Bands
Input Channel Equalizer Gain Range 15 dB
Input Channel Fixed Frequencies 80, 12.000 Hz
Microphone Input Equalizer Gain Range 15 dB
Parametric Microphone Equalizer 3 Bands
Microphone Input Fixed Frequencies 80, 2.500, 12.000 Hz
Dynamics Processing Compressor
Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Output voltage 18 V AC
Power Consumption 24 W
Power Connector In Low Voltage DC plug
Mechanical Specifications
Height (mm) 63 mm
Width (mm) 254 mm
Length (mm) 343 mm
Flightcase Size Optional 19''
Rack Units 8 U
Housing Plastic
Colour Black
Weight 2.48 kg
IP Rating IP20 (indoor use only)
Product Properties
LED Indicators +48V, Clip, Output level, Power
Included Items
Included Accessories Adapter, User Manual
