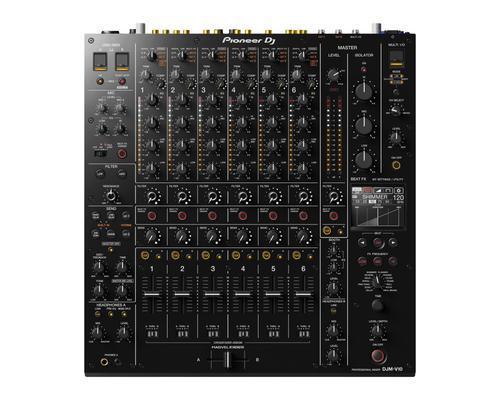

Pioneer DJM-V10 6-Channel Club DJ Mixer

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.

This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.

• ELITE SOUND QUALITY:  Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to  produce a full low-end, vibrant mids, and precise highs.
• 6 CHANNELS WITH A WIDE RANGE OF INPUTS:  You’re free to create your perfect setup with 6 channels and a host of different input types.
• 4-BAND EQ AND COMPRESSOR:  Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.
• EFFECTS FOR MORE CREATIVE EXPRESSION:  The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless
• 3-BAND MASTER ISOLATOR:  Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.
• DUAL HEADPHONES OUTPUT AND BOOTH EQ:  The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

Main Features

• MIDI Control:  Full assignable MIDI controls
• ProDJ Link:  Yes
• Booth EQ:  Yes
• P-LOCK Fader Caps:  Yes
• Auto Standby:  Yes
• DVS Control
  • rekordbox
  • Serato DJ Pro
  • TRAKTOR PRO 3

Specifications

• Width:  437.6 mm
• Height:  107.9 mm
• Depth:  467 mm
• Weight:  11.9 kg
• Frequency Range:  20 - 40000 Hz
• Sampling Rate:  96 kHz
• A/D Converter:  32 bit
• D/A Converter:  32 bit
• S/N Ratio Line:  105 dB
• S/N Ratio Phono:  88 dB
• S/N Ratio Mic:  79 dB
• Distortion:  < 0.005 % (LINE)

Channels

• EQ:  4 band
• EQ Range:  [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
• COMP:  Yes

Performance Control

• Channels:  6
• Filter
  • HPF
  • LPF
• SEND
  • Short Delay
  • Long Delay
  • Dub Echo
  • Reverb
  • 2 Externals (1/4-inch TS jack)
• MULTI I/O
  • 1/4-inch jack
  • USB (Type A)
• Beat FX
  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Helix
  • Reverb
  • Shimmer
  • Flanger
  • Phaser
  • Filter
  • Trans
  • Roll
  • Pitch
  • Vinyl Brake
• FX Frequency:  Yes
• X-PAD:  Yes
• rekordbox Quantize:  Yes
• Master Isolator:  Yes

Crossfader

• Crossfader Type:  Magvel Fader
• CURVE Assignable:  Yes
• Fader Curve:  3

Mic

• Mic Connection
  • XLR / 1/4-inch Jack Combo
  • 1/4-inch TRS Jack
• Talkover:  3 Position Switch
• Talkover Attenuator:  Yes

Terminals

• Inputs
  • 6 DIGITAL (Coaxial)
  • 6 LINE (RCA)
  • 4 PHONO (RCA)
• Send/Return
  • 3 SEND (1/4-inch TS jack)
  • 3 RETURN (1/4-inch TS jack)
• LAN:  1
• USB
  • 2 USB B ports
  • 1 USB A port
• Outputs
  • 2 MASTER (XLR, RCA)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
  • 1 REC OUT (RCA)
  • 1 DIGITAL (AES/EBU)
  • 1 MIDI (DIN)
