Description

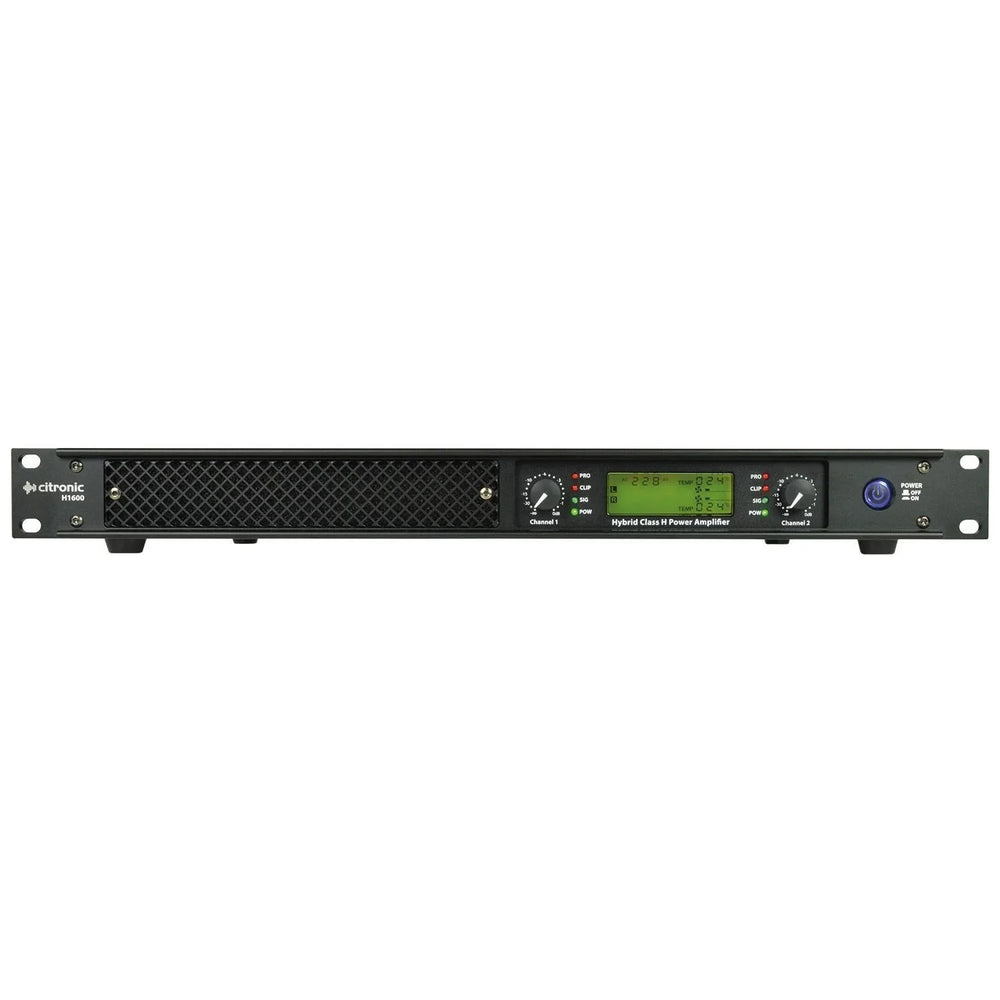

Lightweight power amplifiers in a 19" rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.
- Hybrid class-H circuit design
- Digitally controlled and monitored power section
- Switchable 120Hz low-pass crossover
- Backlit LCD status display
- Full internal thermal and overload protection
- Stable down to 2 Ohms (4 Ohms bridged)
- Power supply200-240Vac, 50Hz (IEC)
- Amplifier : constructionHybrid Class-H
- ProtectionShort/open circuit, thermal, RF, DC fault, on/off mute, active inrush
- Frequency response20Hz-20KHz ±0.5dB
- CrossoverSwitchable full range or fixed 120Hz low-pass filter
- THD +N0.2%
- S/N ratio-95dB
- Damping factor>700
- Input sensitivity1.0V - 1.4V - 2.0V switchable
- Input impedance20K? (balanced),10K? (unbalanced)
| Dimensions | 483 x 361 x 44 mm (1U) | |
|---|---|---|
| Fuse | T6AL 250V | |
| Power rms @ 8 Ohms | 2 x 450W | |
| Power rms @ 4 Ohms | 2 x 650W | |
| Power rms @ 2 Ohms | 2 x 800W (40ms burst 1kHz sine) | |
| Power rms bridge @ 8 Ohms | 1200W | |
| Power rms bridge @ 4 Ohms | 1600W (40ms burst 1kHz sine) | |
| Weight | 6.8kg |
